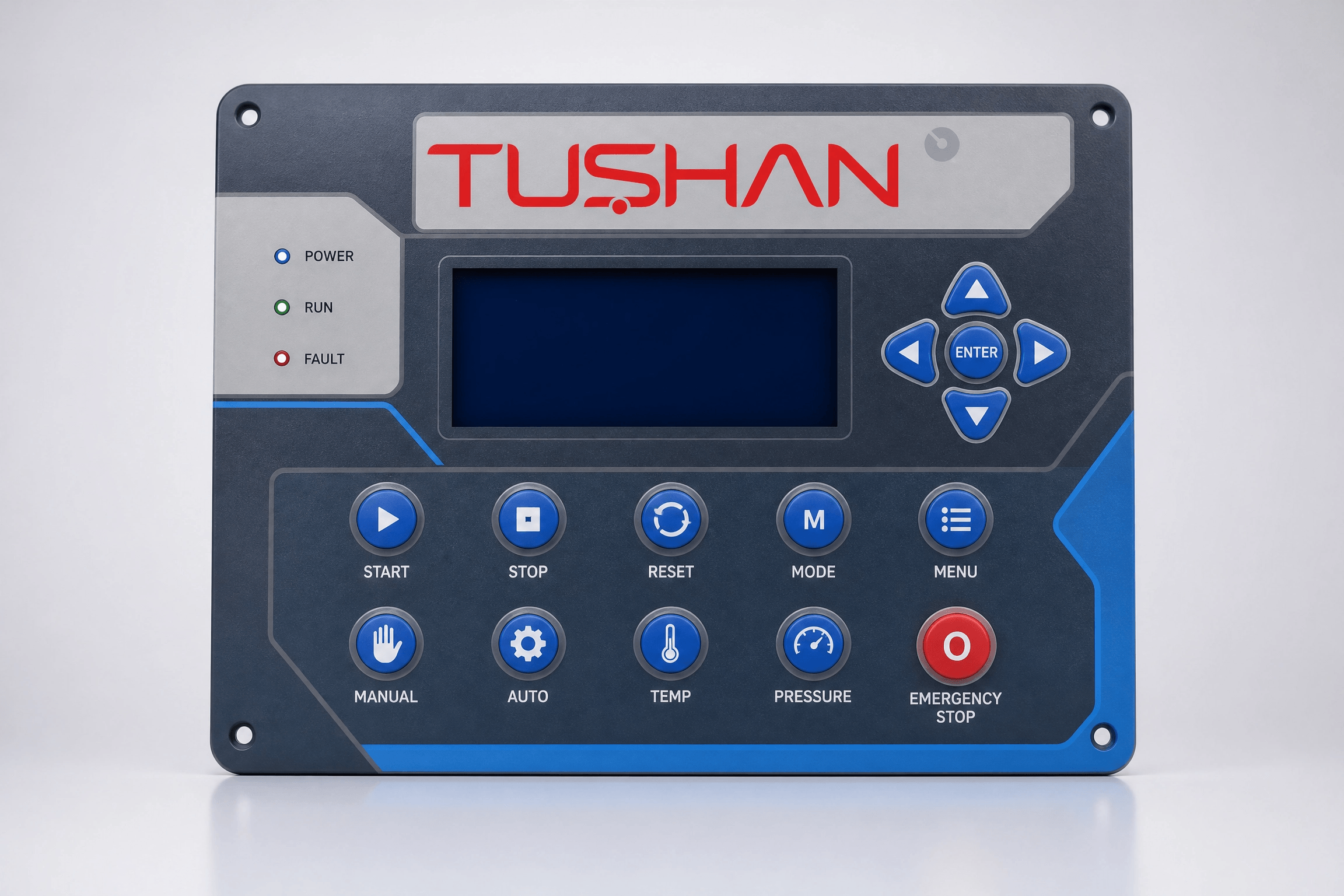

Membrane switch design looks at first like a printed overlay sitting on top of a circuit. In practice it requires six to eight layers to work together mechanically, electrically and chemically; a typical six-layer build measures 0.9-1.4 mm in total thickness, and within that roughly one-millimetre budget the overlay, embossing, spacer, circuit and adhesive all have to find room. A large share of field failures does not come from manufacturing but from decisions made at the drawing stage. Below are the 10 critical mistakes we see most often in machine builder, industrial control and device projects, with concrete numbers.
Material and thickness mistakes in membrane switch design
Mistake 1: Confusing PET and PC in the overlay
The most common error is specifying polycarbonate (PC) for a panel that contains embossed keys. PC is rigid, dimensionally stable and prints beautifully, but it develops micro-cracks under repeated flexing and does not hold embossed geometry over time. Polyester (PET) is elastic enough to survive millions of actuation cycles while keeping the embossed shape. The practical rule: every area a finger presses should be PET; use PC only for flat decorative surfaces and display windows.
| Property | PET (polyester) | PC (polycarbonate) |
| Typical thickness | 0.125 - 0.2 mm | 0.175 - 1.0 mm |
| Emboss retention | Good, permanent | Limited |
| Repeated flex life | High | Low |
| Chemical resistance | High | Moderate |
| Dimensional stability | Moderate | High |
| Typical use | Flat and embossed key areas | Non-embossed front panels, display windows |
Mistake 2: Not carrying total thickness into the mechanical design
Mechanical engineers often allocate a 0.5 mm recess pocket for the panel, while a metal dome plus backlit build pushes total thickness toward 1.4 mm because of the added layers. Pocket depth must account for panel thickness plus the adhesive layer plus a flatness allowance. Otherwise the panel does not seat, the edges lift, and the adhesive eventually releases.
Mistake 3: Not describing the emboss type and height
Writing "embossed" on the drawing is not a specification. Pillow embossing raises the whole key, typically by 0.3-0.8 mm; rim embossing outlines only the key perimeter and helps a gloved operator locate the key without looking. A detail many designers miss: as emboss height increases, the ink in the overlay stretches, and on dark backgrounds a slight lightening appears at the top of the dome. For that reason, avoid placing thin-stroke text or fine icons on the emboss crown.
Tactile feedback and circuit layout mistakes
Mistake 4: Starting the circuit before defining tactile feedback
The choice between a metal dome, a poly dome and a non-tactile flat build determines the entire internal geometry. Metal domes typically deliver 1-5 million cycles with a crisp, audible click. Poly domes formed into the polyester layer usually fall in the 100,000-500,000 cycle range with a softer feel. A non-tactile flat circuit is quiet and has the least mechanical fatigue, but it gives no feedback. Actuation force is set by dome selection, typically in the 1.5-5 N range, with the upper band chosen for gloved operation. Because this decision drives dome placement, spacer hole diameter and contact pad geometry, changing it later means new tooling.
Mistake 5: Leaving the tail exit until last
The tail is not a separate cable; it is an uncut extension of the circuit layer. It therefore cannot leave the panel outline at a sharp corner, and without a radiused root it is likely to tear during first assembly. Tail direction, length (plan for a ±1 mm tolerance) and bend radius must be fixed in the first sketch, based on where the board sits behind the panel. If a 180-degree fold-back is required, place the fold line in a low trace-density area and never route a trace through a repeatedly flexed point.
Mistake 6: Leaving circuit topology and connector undefined
A 16-key panel needs 17 traces wired individually but only 8 in a 4x4 matrix, and that difference changes tail width and connector choice completely. ZIF connectors typically use a 1.0 mm pitch with a 0.2-0.3 mm stiffener bonded to the tail end. A frequently skipped detail is contact orientation: if the drawing does not state whether the exposed traces face up or down, the tail will be inserted backwards. If the same tail carries both the key matrix and LED supply, trace count and current-carrying capacity must be calculated up front.
Backlighting, adhesive and sealing mistakes
Mistake 7: Treating a backlit panel as a late add-on
A backlight layer changes both total thickness and circuit routing. SMD LEDs typically offer 50,000-100,000 hours of life, but that figure assumes nominal current and controlled temperature; heat trapped inside the panel shortens it noticeably. Current limiting is best resolved on your own control board; if LED count, colour and supply voltage are not stated up front, the space and thermal allowance inside the panel cannot be calculated correctly. Without a diffuser layer, point-source lighting produces a bright spot above each LED and shadows in between. If only icons should be lit, add a blocking layer behind the light-transmitting ink; otherwise light bleeds across the whole panel.
Mistake 8: Choosing the adhesive and mounting surface too late
Adhesive is the cheapest component in the panel and a frequent source of field failures. 3M 467MP (2 mil, about 0.05 mm) suits flat, clean, high surface energy metal. For powder-coated, textured or slightly uneven surfaces, 468MP (5 mil, about 0.13 mm) is the correct choice. Leave at least 3 mm of bonding width around the perimeter and at least 2 mm around holes and windows. If weld spatter, old label residue or silicone-based cleaner remains on the mounting surface, the bond will release during the first thermal cycles.
Mistake 9: Missing the conflict between venting and IP protection
When a key is pressed, air trapped inside the spacer is compressed. Without a vent channel, neighbouring keys bulge slightly, return is sluggish and the tactile feel degrades. The classic fix is a channel in the spacer that vents along the tail, but if IP65 or IP67 is the target, that channel is a direct leak path. In sealed panels the channels are closed loops that equalise pressure inside a common internal volume and never reach the outside. The second and more serious misconception is treating the IP rating as something the panel provides on its own. Protection is achieved by the panel, the mounting surface, the tail exit slot and the gasket together; if the tail slot is not sealed, the system is not IP65 no matter how good the front surface is.
Graphics, colour and cutting tolerance mistakes
Mistake 10: Printing on the front surface and ignoring cut tolerance
Membrane switch and graphic panel artwork is printed in reverse on the back of the material, so the substrate itself protects the ink from abrasion, cleaning chemicals and UV. Front-printed panels wear off within months under heavy use. The second frequent error is ignoring cut tolerance: die cutting is typically ±0.2 mm and laser cutting ±0.3 mm. If the display window, LED holes or panel outline are drawn too tight to absorb that, a thin white line appears along the edge. Allow at least 0.5 mm of ink overlap around windows and holes. Specify colour with Pantone references rather than screenshots or RGB files, choose a matte or lightly textured finish to reduce fingerprint visibility, and use a hardcoat surface over display windows.
Checklist before releasing the design file
- Is the overlay material and thickness stated (PET 0.125-0.2 mm / PC 0.175-1.0 mm)?
- Is the emboss type (pillow or rim) and height (0.3-0.8 mm) dimensioned?
- Is tactile feedback selected: metal dome (1-5 million cycles), poly dome (100,000-500,000 cycles) or non-tactile?
- Is the circuit topology (matrix or individual) and total trace count fixed?
- Are tail exit direction, length, contact face orientation and ZIF pitch (typically 1.0 mm) defined?
- For backlit panels, are LED count, colour, supply voltage and where current limiting is resolved specified?
- Is the adhesive type stated along with the material and coating of the mounting surface?
- Is the target IP rating resolved at system level, including sealing of the tail exit slot?
- Are Pantone codes, window areas and surface finish (matte, gloss, hardcoat) defined?
- Is cut tolerance (die ±0.2 mm, laser ±0.3 mm) added to the assembly allowance?
- Are total panel thickness (typically 0.9-1.4 mm) and recess pocket depth verified?
Most of these items take a few minutes to resolve at the prototype stage; after production release they mean new tooling, re-validation and lost time. Tushan Elektronik manufactures membrane switch keypads, embossed graphic panels, backlit panels and touch panels at its facility in Ikitelli OSB, Istanbul; send us your drawing or even a hand sketch and we will come back with a technical review and a quotation.
