"1 million cycles" is the most common line in a membrane keypad specification. On its own it is not a durability guarantee; it is a measurement result obtained on a defined test rig, at a defined actuation force, against a defined pass/fail criterion. The same keypad may comfortably exceed one million cycles with one actuator tip and fall out of tolerance at 200,000 cycles with another. Understanding how a keypad life figure is generated is the only way to compare two quotations on equal terms.
What "1 million cycles" measures — and what it does not
One cycle is a single press-and-release of a key. A life test measures whether, at the end of that repeated motion, electrical closure still occurs within the accepted limits. In other words, what is being measured is the repeatability of contact between the dome (metal or embossed polyester) and the printed silver conductive circuit beneath it.
The test does not measure:
- Abrasion life of the printed graphics and hard coat on the front surface
- Long-term shear or delamination behaviour of the mounting adhesive
- Luminous flux depreciation in backlit panels
- Insertion/withdrawal and flex endurance of the tail and ZIF contact area
- Panel behaviour under humidity, chemical exposure and thermal cycling
Most field failures originate from these five areas rather than from contact fatigue. Treating the cycle rating as the single acceptance criterion is therefore misleading.

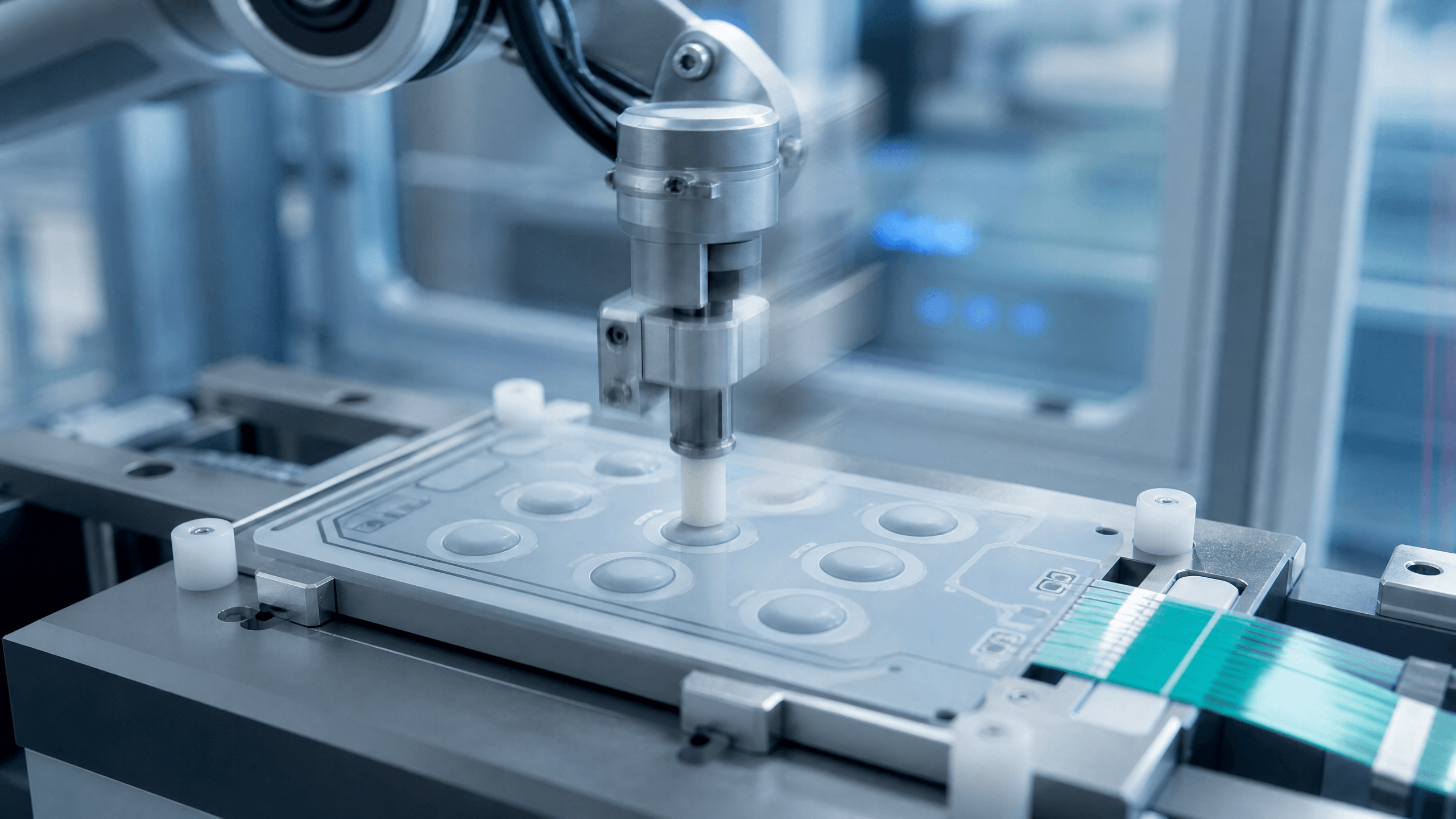

How a life test is run: rig, parameters and acceptance criteria
Test rig parameters
A life test result is not reproducible unless all of the following are stated:
- Actuator tip: typically 8-12 mm diameter, 50-70 Shore A silicone, so that it behaves close to a human finger. A rigid steel or plastic tip measurably shortens life on the same key.
- Actuation force: roughly 1.5-2x the nominal operating force. For a 300 gf dome, 450-600 gf.
- Frequency: 2-5 Hz. Faster cycling does not allow polyester layers to recover and distorts the result.
- Strike point: dome centre. An offset of 1-2 mm produces one-sided fatigue in metal domes.
- Ambient conditions: 23 ± 2 °C, 50 ± 10 % RH unless otherwise specified.
- Measurement interval: contact resistance, bounce time and actuation force recorded at fixed intervals (for example every 50,000 cycles).
Acceptance criteria
The test ends not when the key "stops working", but when one of the values below leaves its limit:
| Parameter | Typical acceptance range | Why it matters |
| Closed-circuit contact resistance | ≤ 100 Ω (≤ 200 Ω in some applications) | High resistance causes missed presses on low-voltage input stages |
| Open-circuit insulation resistance | ≥ 100 MΩ at 100 VDC (≥ 10 MΩ accepted in some specifications) | Leakage risk under humidity and ionic contamination |
| Contact bounce | ≤ 5 ms | Must sit inside the 10-20 ms firmware debounce window; otherwise double entries occur |
| Actuation force drift | Within ±20 % of the initial value | Preserves tactile feel and perceived quality |
| Visual / mechanical condition | No delamination, cracking or collapsed emboss | Electrical values may still pass while the panel is unusable |
Where the keypad life difference between metal dome and poly dome comes from
The single largest driver of the cycle figure is the element that generates tactile feedback.
| Property | Metal dome | Poly dome (embossed polyester) |
| Typical life | 1-5 million cycles | 100,000-500,000 cycles |
| Actuation force | Approx. 160-520 gf | Approx. 100-300 gf |
| Travel | 0.2-0.5 mm | 0.3-0.8 mm |
| Tactile feel | Distinct click, snap ratio 40-60 % | Soft, non-detented |
| Dominant failure mode | Dome flattening, edge cracking | Permanent plastic deformation of PET |
The difference is a material one. A stainless steel dome operates in the elastic region and recovers its shape. Embossed polyester behaves viscoelastically: each press accumulates micro-level permanent set, and emboss height decays over time. For that reason a poly dome typically reaches end of life as "the click is gone", not as "the contact no longer closes".
The most common design error that shortens metal dome life is an incorrectly dimensioned dome pocket combined with an overly rigid overlay. Replacing a 0.175 mm PC overlay with a 0.5 mm PC overlay raises the effective actuation force on the same dome and pushes the operator to press harder, which makes the published cycle rating meaningless in the field.
Tests applied beyond the cycle test
Real service life is the combined result of the tests below. Specifying only a cycle count is an incomplete definition.
| Test | What it reveals |
| Cross-hatch and tape adhesion test | Adhesion of printed inks and hard coat to the substrate |
| Taber abrasion (CS-10 wheel, 500 g load) | Resistance of the graphic surface to finger and glove wear |
| Chemical rub test (IPA, ethanol, detergent) | Print fading and surface hazing after cleaning cycles |
| Damp heat (85 °C / 85 % RH) and thermal cycling (-40 to +85 °C) | Delamination, resistance rise in silver traces, emboss collapse |
| Adhesive shear test | Panel creep at elevated temperature and in vertical mounting |
| ESD (electrostatic discharge) test | Effect of discharge travelling from the panel face to the controller |
| Ingress protection (IP65 / IP67) | Dust and water resistance of the front surface |
Adhesive selection is particularly critical here. A 0.05 mm (2 mil) transfer tape is adequate on flat, clean, higher-energy surfaces, while a 0.13 mm (5 mil) tape provides markedly better wet-out on painted sheet metal or lightly textured surfaces. The wrong choice means the panel lifts within months even if the switch itself passes a million cycles.
One more frequent misunderstanding concerns IP ratings: IP65 or IP67 applies to the panel's own layer construction. If the panel is incompletely bonded, or a 0.3 mm burr remains on the mounting surface, sealing is lost. Ingress protection is a property of the installation, not of the panel alone.
How is life defined for backlit and touch panels?
In backlit panels, life is defined by burn hours, not by press count. LEDs are typically rated in the 50,000-100,000 hour range, but that figure is valid at nominal drive current and the stated junction temperature. Raising the drive current increases brightness only up to a point — light output rises sub-linearly because of efficiency droop — while shortening life far more steeply. In enclosed volumes where heat cannot dissipate, real life also falls below the rated value.
Touch panels contain no moving mechanical element, so the concept of cycle life does not apply. What matters instead is surface abrasion and scratch resistance: pencil hardness of the hard coat, surface roughness after rub cycling, and resistance to cleaning chemicals. For these products the right question is not "how many cycles" but "which cleaning agent, how many times".
Checklist for your specification
- Target cycle count and the actuation force, actuator tip and frequency used to verify it
- End-of-test acceptance criteria: maximum contact resistance, maximum bounce, permitted force drift
- Dome type (metal dome / poly dome), nominal actuation force and tolerance
- Operating and storage temperature range
- Overlay material and thickness (PET 0.125-0.2 mm or PC 0.175-1.0 mm)
- Target total panel thickness (typically 0.9-1.4 mm for a 6-layer build)
- Cutting method and tolerance expectation (die ±0.2 mm, laser ±0.3 mm)
- Adhesive type/thickness plus the material and roughness of the mounting surface
- Tail length, ZIF pitch (for example 1.0 mm), contact orientation and stiffener thickness
- Required IP rating and the mounting condition under which it is assessed
- Cleaning chemicals to be used and their frequency
- For backlit panels: drive current, colour and required brightness uniformity
Once these items are written down, "1 million cycles" stops being a marketing phrase and becomes a verifiable engineering target.
