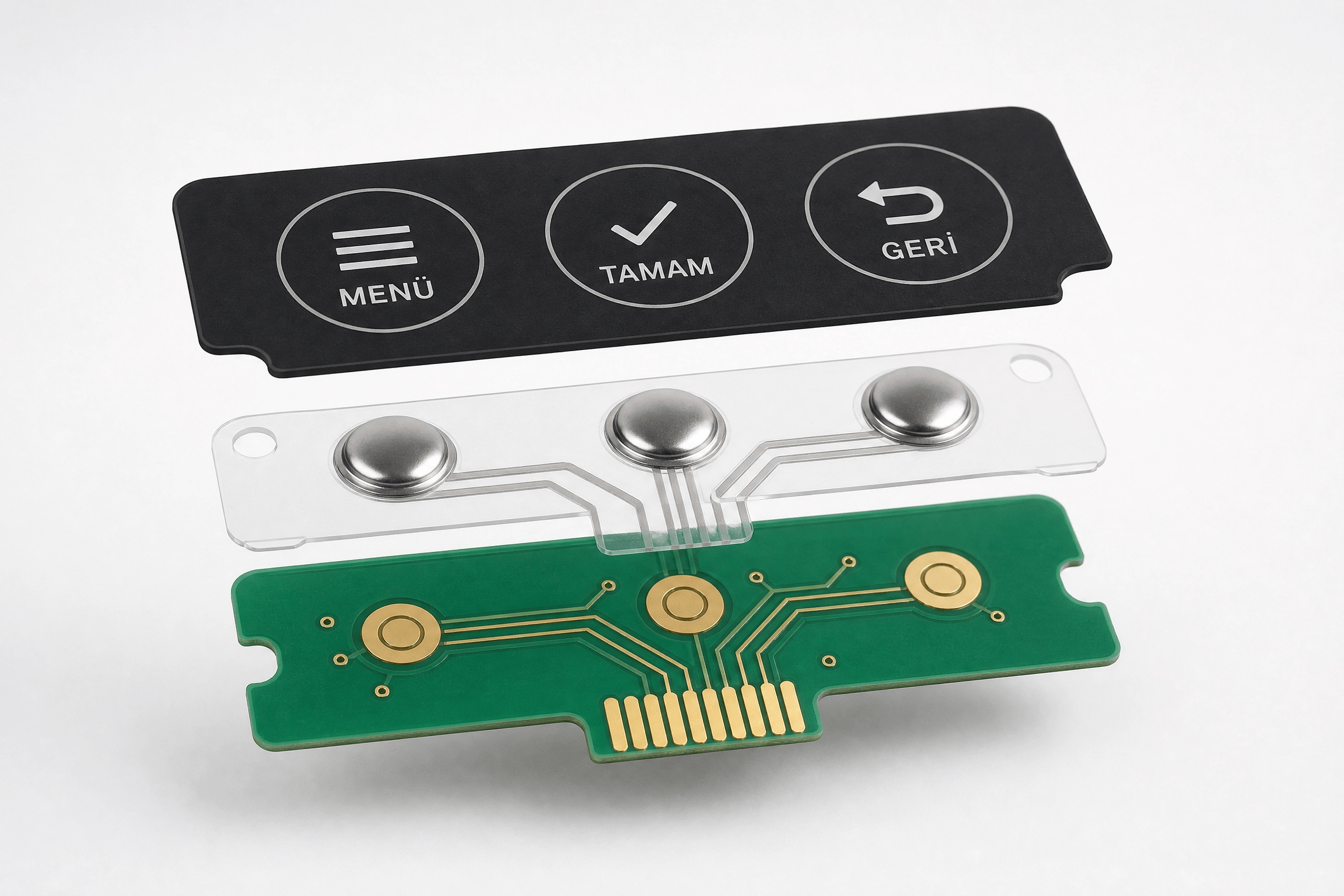

The most common mistake when writing a membrane switch specification is treating the part as a single material. In reality a membrane switch is a multi-layer system: a graphic overlay, adhesive films, screen-printed silver circuit layers and a spacer, all laminated into one assembly. Every parameter, from layer count and overlay thickness to key life and ingress rating, drives both field durability and unit cost. Defining these values clearly at the outset avoids surprises at the sample stage and reduces revision costs in series production. Because Tuşhan Elektronik builds membrane switches, metal and poly dome keypads, LED backlit panels, touch panels and Lexan labels to customer drawings, this guide gathers the technical values an engineer or buyer needs when drafting a specification, alongside typical industry ranges.
One note before the numbers: the values below vary with the application and the design. Read them not as a fixed, vendor-specific guarantee but as typical industry ranges you can reference while writing a specification; the final spec for any project is settled during sample approval.
Membrane Switch Technical Specification Table
The table below collects the core parameters that form the backbone of a specification. In the sections that follow, we explain what each row means, which value suits which application, and the criteria behind the choice.
| Parameter | Typical Value |
|---|---|
| Number of layers | 4-8 layers (6 layers typical) |
| Total thickness | 0.9-1.4 mm (6 layers, mounting adhesive included) |
| Overlay material | PET 0.125-0.2 mm / PC 0.175-1.0 mm |
| Circuit layer | Silver conductive + carbon printed on PET film |
| Key life | Metal dome 1-5 million cycles / poly dome 100,000-500,000 cycles |
| Actuation force | Typically 150-500 gf, depending on dome selection |
| LED life | 50,000-100,000 hours |
| Operating temperature | Typically -20 °C to +70 °C |
| Ingress protection | IP65 / IP67 on the front face (subject to sealed edge and gasket design) |
| Connector | ZIF tail termination, 1.0 mm pitch |
| Mounting adhesive | 3M 467MP (0.05 mm) / 468MP (0.13 mm) |
| Cutting tolerance | Die cutting ±0.2 mm / laser cutting ±0.3 mm |
Layer Count and Total Thickness
The first line of a membrane switch specification is usually the layer construction. A typical panel is built from six layers, but depending on requirements this ranges from 4 to 8 layers. A simple design needing only a graphic and a circuit is solved with fewer layers, while a metal dome retainer, an LED layer, a light guide or EMI shielding push the count up. Each additional layer adds to the total thickness, mounting adhesive included.
Total thickness, mounting adhesive included, is in the 0.9-1.4 mm range for a standard six-layer build. This slim profile is the membrane switch's key advantage: in control cabinets, weighing systems, medical devices and industrial machinery with limited mounting depth, the panel seats into a millimetre-deep pocket. When you state a thickness, account for the enclosure pocket depth, since emboss height and an LED layer can shift the profile by a few tenths of a millimetre.
Overlay Material: Choosing PET or PC
The overlay is the graphic layer the user sees and touches, so stating its material and thickness correctly matters for both appearance and durability. Two base films are used.
- PET (polyester): in the 0.125-0.2 mm range. Ideal for embossed keys and high cycle counts, with good chemical resistance and strong tolerance to repeated flexing. Embossed and metal dome designs most often use PET.
- PC (polycarbonate): in the 0.175-1.0 mm range. Offers high optical clarity and a more rigid feel; suited to display windows and flat, non-embossed panels. Its wide thickness range gives flexibility where a stiff overlay is required.
Beyond the material, the surface texture belongs in the specification too. A matte (anti-glare) finish reduces reflection under bright lighting; gloss, fine texture or leather grain are chosen by visual preference. Where resistance to scratching and alcohol-based cleaning agents is needed, specify a hardcoat. Material, texture and colour are a topic of their own that we leave to our materials article; here the focus stays on the specification values.
Key Life and Actuation Force
Key life is perhaps the most scrutinised line in a membrane switch specification, because it directly sets the product's service life and depends on the tactile method. Life should always be discussed together with the dome choice.
Metal dome versus poly dome life
A stainless steel metal dome gives a crisp click and typically offers a life in the 1-5 million cycle range, which is why it is preferred for machine controls and frequently operated function keys. A poly dome, formed by embossing the polyester film, gives a softer response and operates in the 100,000-500,000 cycle range, suiting large key areas and cost-sensitive designs. Stating the expected daily actuation count makes selecting the right dome type far easier.
Actuation force
Actuation force is the force at which the key responds, typically in the 150-500 gf range. The value is set by the selected dome type and its geometry. A lower force suits light, rapid use; a higher force suits applications where accidental actuation is critical and a distinct click is wanted. In gloved environments, an embossed surface and adequate actuation force are considered together.
LED Life and Operating Temperature
For illuminated panels, LED life and operating temperature are two inseparable lines of the specification. LEDs mounted on the circuit layer illuminate key legends or status indicators and typically last 50,000-100,000 hours. Where uniform illumination is required, a light guide layer can light the whole key surface at even brightness. The LED colour, position, quantity and supply voltage must be given clearly, since they affect both the layer construction and the total thickness.
The operating temperature range is typically -20 °C to +70 °C. If the panel will run outside this band, for example in cold storage or outdoor use, the adhesive and film selection is reviewed accordingly so the right material combination is set from the start.
Sealing and Ingress Protection
Protection against water, dust and cleaning fluids is expressed by the IP rating. The front face typically targets IP65 / IP67, but that value depends on the sealed edge design and the gasket solution. A one-piece, uninterrupted graphic overlay, edges that seat fully against the enclosure and, where needed, an additional gasket are the preconditions for reaching the target rating.
Simply stating "I want IP67" is not enough in a specification; it should say whether protection applies to the front face only or to the whole enclosure after mounting. The rear tail exit and the mounting hole areas are the most critical points for sealing.
Connector, Adhesive and Cutting Tolerance
The final group in the specification defines the panel's electrical connection, its mounting to the enclosure and its dimensional precision. These three parameters are often overlooked, yet they cause the most trouble at assembly.
- Connector: the circuit exits the panel as a tail formed from the same film and plugs directly into a ZIF connector, with a typical pitch of 1.0 mm. The tail exit direction, length and pin order must be shown on the drawing; no separate wire harness or solder joint is required.
- Mounting adhesive: a high performance acrylic tape fixes the panel to the enclosure. 3M 467MP (0.05 mm) is typical for flat, smooth surfaces and 468MP (0.13 mm) for painted or slightly textured surfaces. The mounting surface material (painted steel, aluminium, ABS and similar) directly affects the adhesive choice.
- Cutting tolerance: the panel outline is cut with steel rule dies in series work and by laser for low volumes and prototypes. The dimensional tolerance is on the order of ±0.2 mm for die cutting and ±0.3 mm for laser cutting. For the panel to seat fully into the enclosure pocket, this tolerance must align with the critical dimensions on the drawing.
The Next Step Toward a Correct Specification
The values above form the skeleton of a membrane switch specification, but the manufacturing process, the documents needed for a quotation and the material details are topics in their own right that we cover in separate articles. Even a specification that looks complete on paper is truly validated on a sample: layer construction, tactile feel, LED brightness and mounting fit only become clear with a physical example.
The soundest path, therefore, is to start with a technical file covering the drawing (DXF/AI/PDF), the key and LED details and the expected operating conditions, then proceed over a sample. Tuşhan Elektronik works to an ISO 9001 quality system and also produces prototypes/samples and equivalent versions of existing panels. Once you send your drawing and requirement list, we can propose a material and layer construction to match.
