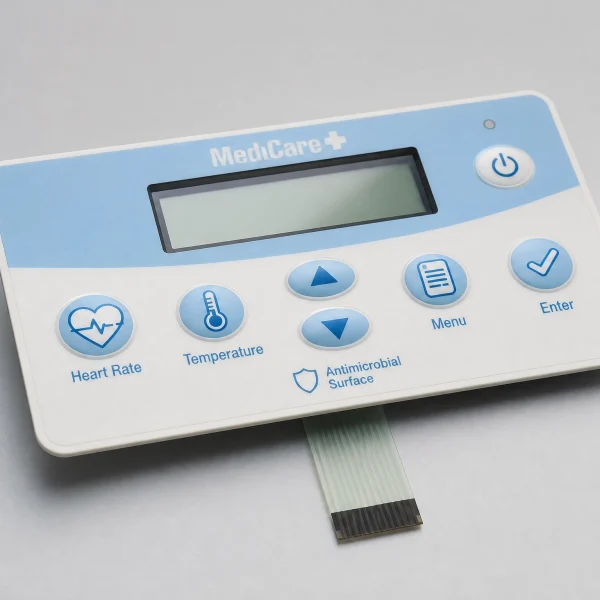

What Drives Membrane Switch Cost and What an RFQ Needs

There is no single list price for a membrane switch. Two panels with identical outside dimensions can differ by a factor of two or three in cost, purely because of layer build-up and function. This article breaks membrane switch cost down driver by driver, gives the data set that lets a supplier quote in one round, and lists the drawing and file mistakes that most often stall an RFQ. The intent is engineering clarity, not sales copy.

Why membrane switch cost is not a catalogue number

A membrane switch is not an off-the-shelf component; it is a semi-finished assembly redesigned for every project. A typical six-layer build — front graphic, graphic adhesive, upper circuit, spacer, lower circuit, mounting adhesive — lands at 0.9-1.4 mm total thickness. Each of those layers means a separate material code, a separate print or cut operation and its own scrap rate. Price is the sum of that operation chain, so the only way to understand cost is to break the chain apart.

Technical drivers of unit cost

Material selection and layer count

PET in the 0.125-0.2 mm range is the usual front-layer choice; its flex fatigue behaviour under repeated key actuation is excellent. Polycarbonate, available from 0.175 to 1.0 mm, offers higher rigidity and print definition but is less tolerant of repeated flexing, so it is typically specified for embossed graphic overlays and non-actuating front panels. Every additional layer in the stack — ESD shield, second spacer, emboss carrier film — adds material, lamination and cutting cost.

Printed circuit area and silver consumption

Conductive traces are screen printed with silver-filled ink. Cost tracks the printed silver area far more than the number of traces: wide common busbars, an over-long tail and needlessly thick routing all translate directly into ink consumption. The strongest lever the designer holds is matrix scanning. On a 16-key panel, one dedicated trace per key requires 17 pins plus long parallel busbars, while a 4x4 matrix does the same job with 8 pins — shrinking both the connector and the silver area.

Tactile feedback: metal dome or poly dome

Stainless steel snap domes typically deliver 1-5 million cycles with a crisp tactile break, with actuation force usually selected in the 150-500 gf band. Polyester poly domes, embossed from film, run in the 100,000-500,000 cycle range with a softer feel. The cost logic runs in opposite directions: metal domes add a purchased part, a dome retainer layer and a placement operation whose labour scales with volume, whereas poly domes need no extra part but do require an embossing tool, which loads the unit price hard at low quantities.

Backlighting

In a backlit panel, every LED means an extra conductive connection, a series-resistor decision, additional layers and an extra step in functional testing. LED service life is typically 50,000-100,000 hours, but cost comes from count and placement difficulty, not from life. Uniform backlighting built with a light guide film requires more layers and more optical tuning than discrete point LEDs; the tighter the uniformity requirement, the higher the price.

Cutting method and tolerance

Steel-rule die cutting holds roughly ±0.2 mm; laser cutting roughly ±0.3 mm. At prototype stage laser removes the tooling charge entirely; in series production the die improves both tolerance and cycle time. A common cost mistake is calling out ±0.1 mm on the outer profile. What actually matters for assembly is usually the centre-to-centre distance between mounting holes and the window position, not the outline itself. Applying tight tolerance only where it is functionally required is one of the easiest ways to bring unit price down.

Adhesive and mounting surface

3M 467MP at roughly 50 µm (2 mil) performs well on flat, high-surface-energy metal panels. 468MP at roughly 130 µm (5 mil) wets out better on lightly textured, powder-coated or less even surfaces. The adhesive line item is small in the cost breakdown, but the wrong choice means field returns. Primer requirements on low-surface-energy plastics should be settled at quotation stage, not after the first delivery.

Colour count and surface finish

In screen printing, every spot colour is a separate screen, a separate pass and a separate cure. Going from two colours to five multiplies print set-up time, and at low volumes this is one of the most visible items in the unit price. Matte or gloss texture, a hardcoated front surface and anti-glare treatment in the display window each change the material code and therefore the price.

Why quantity dominates: amortising the one-off charges

Part of membrane switch cost is independent of order size: film and screen preparation, cutting die, embossing tool, nesting layout work, first-article sample and, where required, a test fixture. Call that one-off total S. The table shows how S dissolves per unit:

A high unit price on a 25-piece prototype order is therefore arithmetic, not a negotiating position. For the same reason, stating your annual requirement up front allows a blanket order with scheduled releases, which lowers the unit price directly.

The overlooked driver: sheet nesting efficiency

Material arrives as sheet or roll in standard widths, and panels are nested onto that surface for printing and cutting. The 6 mm difference between a 210 x 150 mm panel and a 216 x 150 mm panel can drop the parts per sheet from eight to six, raising material cost per unit by about a third. Telling your supplier whether you have a few millimetres of freedom on the outline is the cheapest optimisation available, and it costs nothing in design.

RFQ checklist: what to send

• Part number, revision level and a photograph of the existing part if one exists
• 1:1 scale drawing in DXF or DWG: outer profile, key layout, window areas, mounting holes, tail exit point and direction
• Artwork in vector format (AI, PDF, EPS) with all fonts converted to outlines
• Colour reference: Pantone number plus coated/uncoated designation
• Front material and thickness (PET / PC), finish preference (matte, gloss, textured), hardcoat or anti-glare requirement
• Key count and feedback type: metal dome (target actuation force) or poly dome; state explicitly if non-tactile flat keys are intended
• Circuit architecture: matrix or common-line, total pin count, connector type (for example 1.0 mm pitch ZIF), tail length and bend allowance
• Backlighting: LED count, colour, supply voltage, whether resistors sit in the panel or on the host board, uniformity expectation
• Mounting surface material (powder-coated steel, aluminium, ABS) and adhesive preference
• Operating environment: temperature range, sealing target such as IP65 or IP67, chemical exposure, outdoor UV exposure
• Quantity plan: sample quantity, first order quantity, estimated annual usage
• Required lead time, delivery location, any special packaging or labelling

When the first seven items are complete, pricing usually closes in a single round. Missing data, not price calculation, is what delays quotations.

Common mistakes that stall a quotation

• Sending the drawing as a raster PDF or screenshot — no dimensions can be extracted and every measurement goes back for confirmation
• Key centres in the artwork offset from circuit and dome centres by a few tenths of a millimetre
• No adhesive keep-out defined around the transparent display window
• Hole and profile tolerances specified tighter than the chosen cutting method can hold
• Tail length given flat, with no allowance for the bend radius in the actual assembly
• Attempting to approve spot colours on screen instead of on a printed sample
• Withholding annual volume — without it, tooling investment cannot be allocated correctly

Sample, first-article approval and series production

A sound flow runs as follows: technical file review with design feedback, then a tool-free laser-cut sample, fit trial and first-article approval, then die-cut series production. Unit price is high at sample stage because the entire set-up charge sits on a handful of parts; use that stage to verify geometry and feel, not to benchmark price. The critical points to sign off before series release are colour, surface texture, key force feel, tail length and connector seating, and mounting hole alignment.
