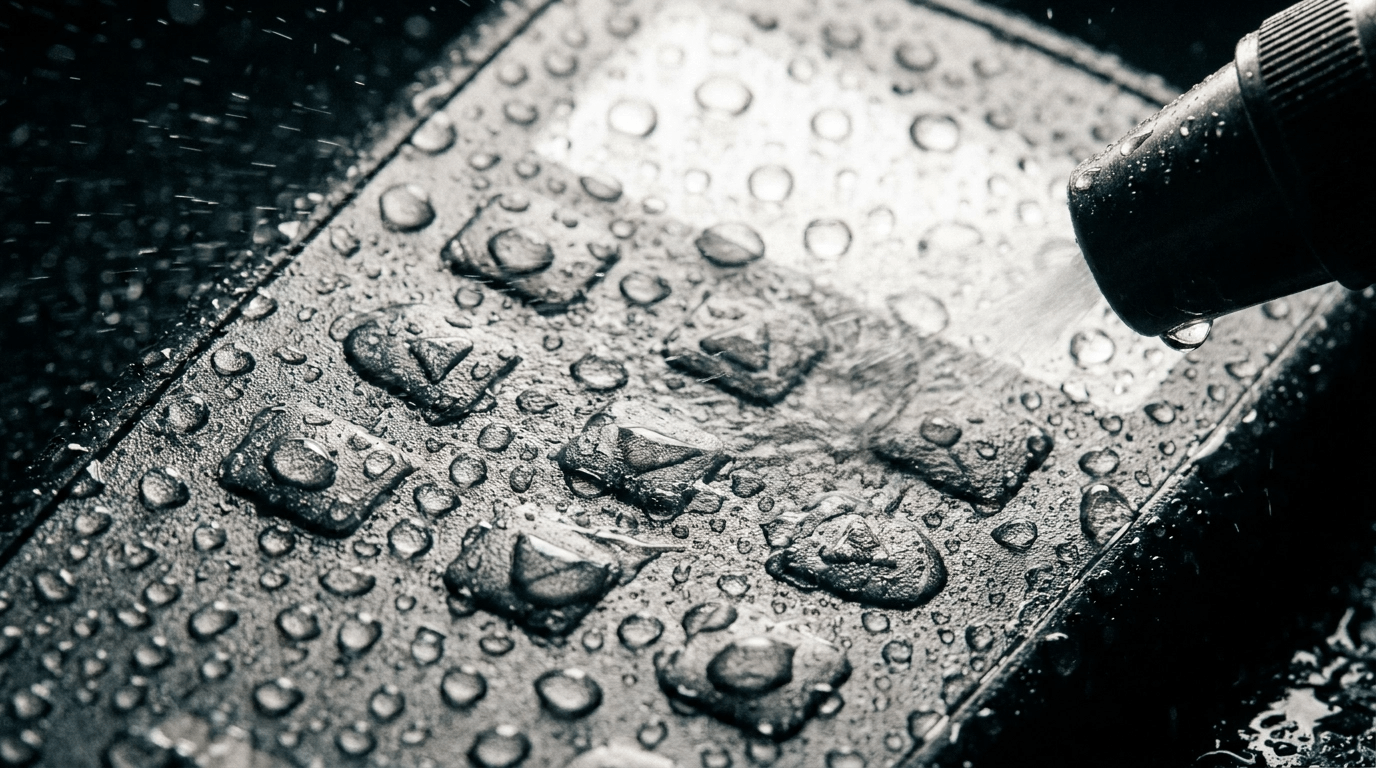

One of the most frequently specified — and most frequently misread — lines in machine and enclosure specifications is the ingress protection rating. The difference between IP65 and IP67 is usually interpreted as "67 is the bigger number, therefore better". In reality IEC 60529 defines these as two independent tests, and a product declared only as IP67 is under no obligation to survive a water jet. On the membrane switch side, sealing is not achieved at the key itself: it is won or lost at the perimeter adhesive line of the graphic overlay, at the tail exit, and at the mounting surface. This article covers what each test actually stresses, and which design decisions turn into field leaks, with concrete numbers.
What the IP code measures — and what it does not
The first digit of the IP code describes protection against solid objects and dust, the second against water ingress. The code is the result of a type test performed under defined laboratory conditions; it is not a general measure of ruggedness.
First digit: dust
IP5X means "dust protected": limited dust ingress is permitted provided function is unaffected. IP6X means "dust tight": a depression of roughly 2 kPa is maintained inside the enclosure in a talc atmosphere for up to 8 hours, with no measurable ingress permitted. In a membrane switch, dust and water travel the same paths, so IP6X is not a separate design problem — it is solved together with water sealing.
Second digit: water
The critical point is this: from IPX1 through IPX6 the higher class covers the lower ones, but IPX7 and IPX8 do not cover IPX5/IPX6. If a product must survive both hose-down cleaning and temporary immersion, the specification must carry a dual marking: IP65/IP67. Writing "IP67" alone places no jet-test obligation on the supplier.
IP65 vs IP67: not the same axis, different failure modes
| Class | Test | Condition | Duration |
| IPX5 | Water jet | 6.3 mm nozzle, 12.5 L/min, 2.5–3 m distance | 1 min per m² of surface, 3 min minimum |
| IPX6 | Powerful water jet | 12.5 mm nozzle, 100 L/min, 2.5–3 m distance | 1 min per m² of surface, 3 min minimum |
| IPX7 | Temporary immersion | Lowest point at 1 m depth, highest point at least 150 mm below surface | 30 min |
| IPX8 | Continuous immersion | Beyond 1 m; conditions agreed between manufacturer and user | By agreement |
| IP69K | High-pressure hot washdown | 80 ±5 °C water, 8–10 MPa, 14–16 L/min, from 0/30/60/90° | 30 s per angle |
The two classes stress the assembly in completely different ways. IPX7 applies a steady hydrostatic pressure of roughly 10 kPa for 30 minutes: low pressure, long exposure, which is exactly what finds capillary channels and micro-paths. IPX5/IPX6 applies low total pressure but a much higher local stagnation pressure where the jet impinges, and it attacks seams, steps and local voids in the adhesive line. In practice, a panel that passes immersion without issue can still leak under a jet because of a poorly positioned tail exit.
Where sealing is actually achieved in a membrane switch
The graphic overlay is a single-piece barrier
The front face of a membrane switch is a one-piece film printed on the second surface: typically hard-coated PET at 0.125–0.2 mm or PC at 0.175–1.0 mm. There are no holes, seams or separate caps in the key area — the film remains continuous even over embossed keys. Metal domes or poly domes sit underneath, inside the layer stack. The key area is therefore inherently sealed; leaks almost always originate at the perimeter.
The perimeter adhesive line
The real load-bearing seal is the uninterrupted adhesive frame on the rear side. A minimum bond width of 3 mm is required in practice; 5 mm or more is preferred when targeting IP67. Inside corners of the frame must not be left sharp — use an R3–R5 radius, since sharp corners trap air during application and are where lift-off starts under thermal cycling. Adhesive selection follows the surface: a 0.05 mm (2 mil) class such as 467MP is adequate on flat, clean metal, while painted, lightly textured or non-flat surfaces call for a 0.13 mm (5 mil) class such as 468MP, whose thicker acrylic layer fills surface irregularity and delivers a measurably more reliable seal.
The tail exit: the most critical detail
The tail is a PET strip 0.125–0.2 mm thick, and where it crosses the perimeter adhesive it creates a step. If the adhesive cannot fully fill that step, capillary channels remain on either side — and during a 30-minute immersion test, water advances exactly there. Three workable solutions exist: route the tail entirely outside the sealing line by redesigning the enclosure cutout; add filler tape above and below the tail to eliminate the step; or pass the tail through a slot in the enclosure and seal that slot independently. A 1.0 mm pitch ZIF termination with a 0.2–0.3 mm stiffener is standard, and that stiffener thickness must also be kept clear of the adhesive line.
Windows, LEDs and cutouts
A display window left clear within the same overlay creates no new seam. A separately bonded lens, by contrast, introduces an additional leak path that needs its own IP verification. In backlit panels the LEDs and light guide remain inside the stack and never penetrate the front surface, so backlighting does not weaken the seal.
Pressure equalisation: the hidden problem of a sealed panel
A standard membrane switch vents the internal volume between its layers to atmosphere through a channel running along the tail. In a fully sealed design that channel is closed and the internal air is trapped. When temperature rises from 20 °C to 60 °C, the trapped air wants to expand by roughly 14 %, in proportion to absolute temperature. Altitude does the same: ambient pressure drops around 20 % from sea level to 2,000 m. The result is visible ballooning over the key areas, preload on the domes, and in extreme cases loss of tactile feel or phantom actuation.
The correct solution is to vent the channel not to atmosphere but into the enclosure's own sealed internal volume, or to fit a hydrophobic, gas-permeable pressure equalisation element on the enclosure. If this detail is missing from the specification, the problem does not appear at commissioning — it appears in the field at the first significant temperature swing.
Mounting surface and application checklist
- Flatness: if deviation exceeds 0.1–0.2 mm over 100 mm, plan for a thicker adhesive or an additional gasket.
- Surface energy: acrylic adhesives typically need 34–38 dyn/cm or higher for a reliable bond; consider primer on low-energy or powder-coated surfaces.
- Cleaning: two-pass wipe with a 50/50 isopropyl alcohol–water mix, lint-free cloth, fresh cloth on the second pass.
- Application temperature: 15 °C minimum, preferably above 21 °C. Acrylic adhesive cannot wet a cold surface.
- Pressure: roughly 100 kPa (≈15 psi) roller pressure along the entire perimeter, with extra attention at corners and the tail step.
- Dwell: acrylic bond strength reaches about 50 % in 20 minutes, 90 % in 24 hours and full strength at 72 hours. Do not run a water test immediately after assembly.
- Cut tolerance: ±0.2 mm with a die, ±0.3 mm with laser. Size the enclosure recess and panel outline accordingly.
- Thermal expansion: PET/PC and an aluminium enclosure expand differently; on edges longer than 200 mm use a wider bond line and radiused corners.
- Stack-up: a typical 6-layer membrane switch is 0.9–1.4 mm thick; verify recess depth against this.
Verification: what to test, and when
An IP rating belongs to the assembled product, not to the keypad in isolation. Specifications should read "panel installed in the enclosure, IP65/IP67" rather than "membrane switch IP67"; otherwise the responsibility boundary stays undefined. IEC 60529 tests are type tests and are not applied to every unit in series production. For production control, a pressure-decay test at 10–20 kPa on the sealed volume is far more practical and gives an acceptance criterion measurable in seconds.
Two further points deserve their own plan. First, IP addresses water only — resistance to isopropyl alcohol, hydrogen peroxide, disinfectants or cutting fluid is a separate material and ink question. Second, sealing must be validated together with life: metal domes are rated for 1–5 million cycles and poly domes for 100,000–500,000 cycles, and the water test should be repeated after cycling. In continuously lit backlit panels, the heat generated over a 50,000–100,000 hour LED life also loads the adhesive line permanently, and tape selection should reflect that thermal load.
