Membrane Switch Keypads for Rail Systems and Public Transport

Rail systems and public transport create one of the harshest duty profiles a keypad can face: continuous vehicle vibration, sun and rain on open platforms, a surface pressed thousands of times a day by gloved or wet fingers, and a service life stretching to 25-30 years. A front panel designed with office-equipment assumptions fatigues within a few seasons under these conditions. Tuşhan Elektronik manufactures membrane switch keypads, embossed graphic panels, backlit panels and touch panels for rail vehicles, station equipment and depot devices, with design decisions driven directly by this duty profile.

Why rail system keypads are engineered differently

The difficulty is not one severe condition but several stacked on top of each other. The same panel must survive vibration, withstand outdoor exposure, and remain open to an uncontrolled user population.

Vibration, shock and long service life

A membrane switch has a structural advantage here: it contains no moving mechanical parts, and its layers are bonded across the full surface, so the loosening and resonance issues typical of mechanical keys do not occur. The weak point is not the key area but the tail and connector region. With 1.0 mm pitch ZIF tails, a stiffener at the tail exit and mechanical fixing of the cable close to the connector are essential; otherwise vibration loads transfer straight into the printed conductive traces.

Public use and deliberate abuse

On a validator, ticket machine or help point, the user does not own the device. Fingernail pressure, scratching with keys and impact from hard objects are ordinary scenarios. Graphics are therefore always printed on the second surface, so the ink is protected by the carrier film rather than exposed to wear. A hardcoated polycarbonate front surface adds substantial scratch resistance. On key life, metal dome constructions operate in the 1-5 million cycle range: a confirm key pressed 1,000 times a day corresponds to roughly 13 years of mechanical life on a 5 million cycle dome. Poly dome constructions, at 100,000-500,000 cycles, are not suitable for passenger-facing interfaces.

From vehicle to station: where these panels are used

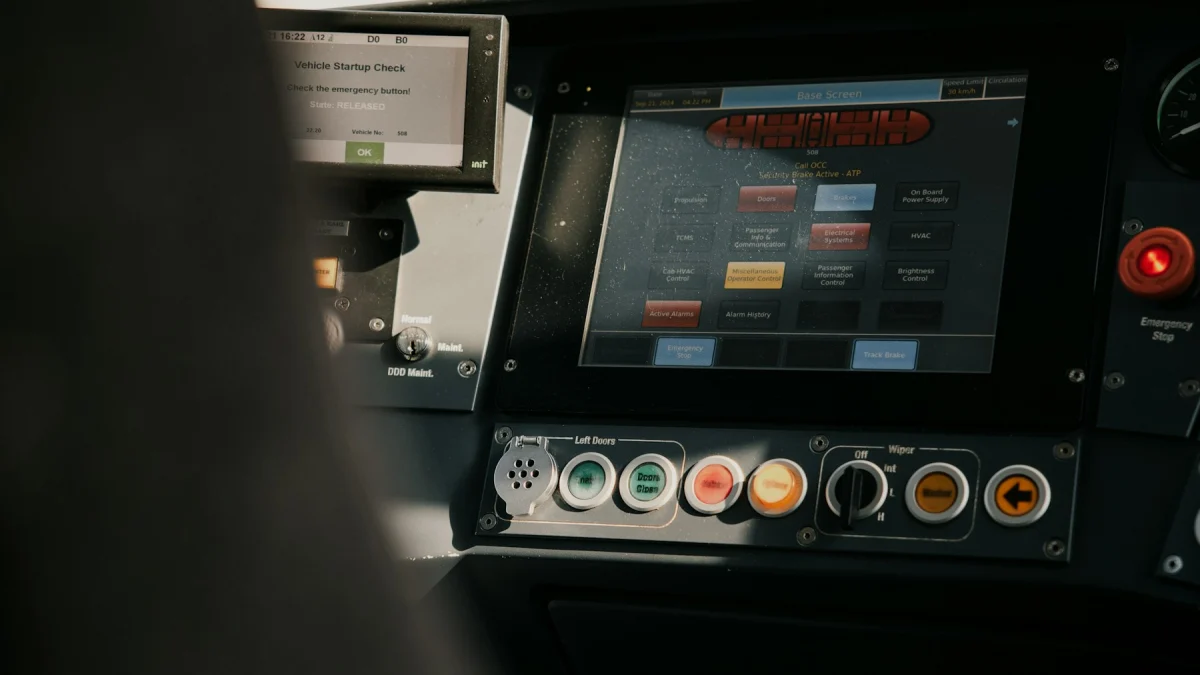

Driver cab and on-board control panels

On door control, HVAC, announcement, lighting and diagnostic panels, the driver must locate a key by fingertip without looking away from the track. Embossed key surfaces and a metal dome with a distinct tactile click are a safety requirement here, not a comfort feature. Backlighting must be dimmable so that dark adaptation is not destroyed during night operation.

Station, platform and passenger interface equipment

Turnstiles, validators, ticket vending and top-up machines, emergency help points, passenger information terminals. On open platforms the panel is exposed to direct sun and rain, and surface temperature can run 20-30 °C above ambient. This drives both adhesive and film selection.

Depot, maintenance and trackside equipment

Depot test benches, maintenance devices, signalling and field cabinets. Operators wear work gloves and have oily hands; panels are cleaned with pressurised water and detergents. Because bus and coach production and rail vehicle manufacturing in Türkiye support an export-driven supply chain, panels for this equipment are frequently defined by an overseas customer specification, while municipal metro and tram refurbishment work generates fixed-geometry, low-volume replacement panel demand.

Technical requirement checklist for rail keypads

• Operating temperature: typically -25 °C to +70 °C for on-board applications; surface temperature must be accounted for on outdoor equipment.
• Ingress protection: IP65 on the front face for platform and outdoor use; IP67 target for depot equipment cleaned with pressurised water.
• Key life: metal dome (1-5 million cycles) for passenger interfaces and driver cabs; poly dome (100,000-500,000 cycles) may suffice for low-frequency service keys.
• Gloved operation: higher actuation force domes combined with embossed key surfaces, with key pitch selected for glove thickness.
• Illumination: LED life of 50,000-100,000 hours; on a validator running 20 hours a day this equals roughly 7-13 years.
• UV and weather resistance: hardcoated polycarbonate front surface, second-surface printing, UV-stable inks.
• Termination: 1.0 mm pitch ZIF tail with stiffener and strain relief at the tail exit.
• Cutting tolerance: ±0.2 mm with steel rule die, ±0.3 mm with laser cutting.
• Total thickness: 0.9-1.4 mm for a typical six-layer membrane switch build.
• Fire and smoke specification: if an on-board project calls for a requirement such as EN 45545-2, share the hazard level (HL) and requirement set at quotation stage so material selection can be evaluated accordingly.

Material, layer and adhesive selection

PET or polycarbonate?

PET is superior in repeated flexing and is preferred for embossed, high-cycle keys. Hardcoated polycarbonate leads on scratch, UV and chemical resistance but has a shorter flex life. The practical approach is to separate high-actuation key zones (PET) from large decorative or information surfaces (PC), or to commit to a single material based on the panel's dominant function.

Adhesive and mounting surface

Rail enclosures are usually powder-coated sheet metal, which has a micro-textured surface. A 0.05 mm tape cannot establish sufficient contact area on such finishes, so the 0.13 mm option should be used. Thin tape remains appropriate on machined or anodised flat aluminium. Before assembly, clean the surface with isopropyl alcohol, apply even roller pressure, and allow for the fact that full bond strength develops over 24-72 hours.

Illumination: sunlit by day, dark cab by night

Backlighting on an outdoor panel cannot compete with direct sunlight. Daytime readability is solved by contrast, not brightness: light symbols on dark backgrounds, correct tinting in window areas, and a matte surface texture that breaks up glare. Matte texture also hides fingerprints. At night the problem inverts, particularly in the driver cab, where backlighting must be dimmable and a lower colour temperature helps preserve dark adaptation. Even LED distribution across the panel and a light guide layer prevent hotspots on individual keys.

Touch panel or metal dome membrane switch?

The decision should follow function. For safety-related functions such as driver cab controls, door control and emergency call, an embossed membrane switch with metal domes is preferred: the user finds the key without looking, confirms actuation by touch, operates with thick gloves, and rain on the surface does not cause false triggering. For ticket machines and passenger information applications with variable menu structures, a touch panel is the right choice. If a capacitive solution uses a thick front panel, sensitivity must be tuned for gloved use and the wet-surface scenario must be tested. Hybrid designs combining both technologies in one device are also feasible.

Accessibility, cleaning and spare part continuity

A public transport panel also serves visually impaired users: raised tactile markers on confirm and cancel keys, clear physical separation between keys, and high symbol-to-background contrast are part of the design brief. On cleaning, if passenger touch surfaces are frequently wiped with alcohol-based products, remember that ammonia and ketone based cleaners can craze polycarbonate; a hardcoated surface helps here as well. Finally, vehicle life exceeds panel life: retaining artwork files and the cutting die so an identical panel can be reproduced years later is a topic worth settling at the start of the project.

What to prepare for a quotation

• Technical drawing showing panel dimensions and mounting cut-outs (DXF preferred)
• Key count, layout, required dome force and embossing requirement
• LED colour, quantity, supply voltage and dimming requirement
• Connector type, pin count and tail exit direction
• Mounting surface material and finish (powder coating, anodising, etc.)
• Operating temperature range, IP expectation and any fire/smoke specification
• Estimated annual quantity and whether an existing panel is being replaced (sample if available)

Send your drawing and sample for your rail project and request a quotation from Tuşhan Elektronik, so that material and layer construction can be defined together against your requirements.
