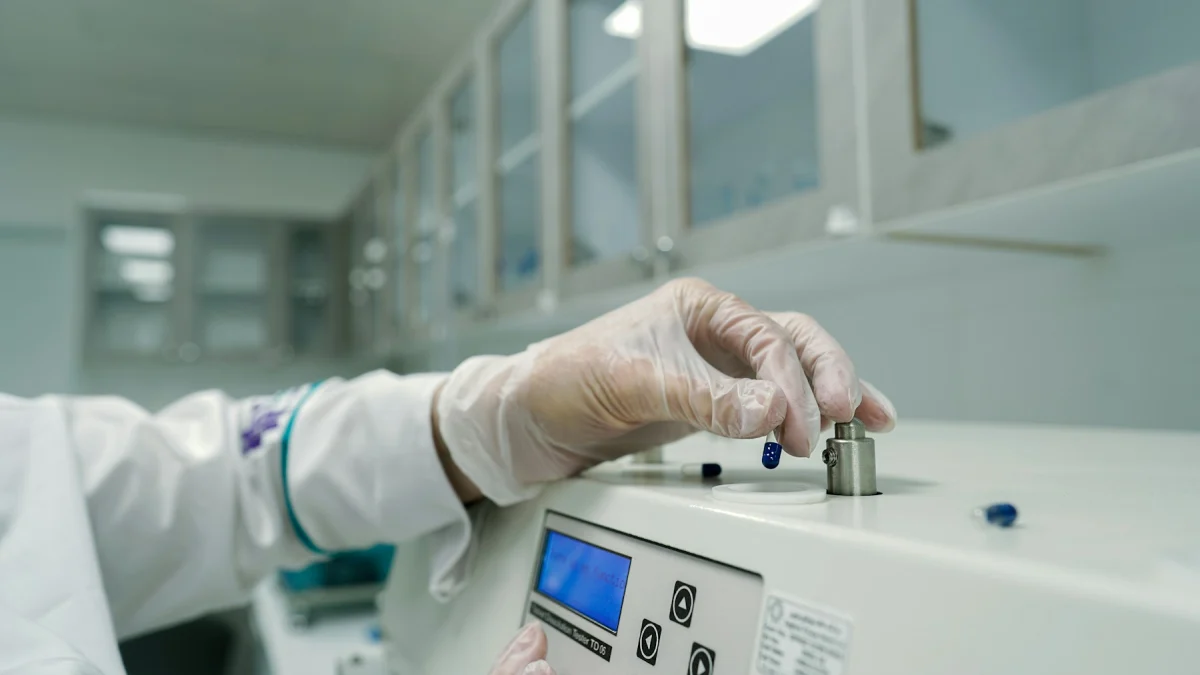

Designing a keypad for laboratory equipment is a different engineering problem from designing one for a factory floor control panel. The front panel of a spectrophotometer, autoclave, centrifuge or incubator is pressed dozens of times a day by gloved fingers, wiped down with ethanol and isopropyl alcohol, occasionally splashed with acidic or alkaline sample fluid, and exposed to humidity and thermal swings during sterilisation cycles. At Tushan Elektronik, the membrane switch keypads we manufacture at our İkitelli facility are built layer by layer around these specific requirements.
How the Laboratory Environment Attacks a Front Panel
An analytical instrument operator does not treat the panel as a control interface — they treat it as a work surface that must be cleaned. That behavioural difference drives every material decision.
Chemical exposure and cleaning cycles
In routine laboratory use the panel surface is wiped with 70% ethanol, isopropyl alcohol, dilute hypochlorite or quaternary ammonium compounds. In low-cost constructions where graphics are printed on the outer face, key legends fade within months, icon edges break up, and eventually the panel becomes unreadable. This is why laboratory instruments require reverse printing — the ink applied to the inner surface of a polyester (PET) or polycarbonate (PC) film. The ink then contacts the adhesive layer rather than the chemical, and graphic life matches the mechanical life of the panel.
Sample splash and sealing
Liquid landing on the panel during pipetting, mixing or agitation is normal, not exceptional. With a closed adhesive perimeter and correctly positioned venting channels between key cavities, IP65 protection from the panel face is achievable. If the instrument must be washed down — a sample preparation unit, for example — the design targets IP67: vent channels are fully closed, the tail exit is sealed with adhesive, and the flatness tolerance of the mounting surface is tightened.
Humidity, vapour and thermal gradients
On autoclave, oven and incubator housings, the rear of the panel heats up while the front face stays near ambient. This gradient produces differential expansion between layers. Polyester film offers better chemical resistance and higher flex life than polycarbonate, making it the preferred choice in hot and humid zones. Adhesive selection matters equally: high-performance double-sided tapes (such as the 0.05 mm / 2 mil and 0.13 mm / 5 mil class represented by 3M 467MP and 468MP) markedly reduce edge lifting and vapour ingress compared with standard acrylic tapes.
Technical Requirement Checklist for Laboratory Equipment Keypads
In an analytical instrument project, the following points normally need to be defined in the specification before tooling begins:
- Overlay film: PET 0.125–0.2 mm where chemical resistance dominates; PC 0.175–1.0 mm where surface hardness and optical clarity dominate.
- Surface texture: Laboratory lighting is typically high-lumen ceiling fixtures, so a matte (velvet) texture is used to kill glare, with a clear gloss window over the display area.
- Tactile feedback: Mandatory for gloved operation. Stainless steel metal domes give 1–5 million cycles; poly domes (embossed polyester) give 100,000–500,000 cycles.
- Actuation force: For operators wearing nitrile or latex gloves, 250–400 gf is a common working range — the lower bound guards against accidental actuation, the upper bound against fatigue.
- Embossing: Pillow or rim embossing so key boundaries can be felt through gloves; a single tactile marker for instruments used without looking at the panel.
- Illumination: Low-brightness LED indicators or LED backlighting where darkened-room optical measurements (fluorescence, luminescence) are performed; typical LED life 50,000–100,000 hours.
- Termination: 1.0 mm pitch tail with stiffener for ZIF sockets, or a conventional male/female connector.
- Sealing: IP65 for wipeable panels, IP67 for washdown panels.
- Cutting tolerance: ±0.2 mm die-cut, ±0.3 mm laser-cut.
- Total stack thickness: 0.9–1.4 mm for a typical six-layer membrane switch construction.
Display Windows, Legibility and Graphic Panel Options
On most analytical instruments the panel does more than carry keys: it frames the LCD or OLED display, masks status LEDs and carries the product identity. Two distinct production approaches apply here.
Embossed graphic panel without switching
Where the instrument is controlled from a separate interface, the front surface needs only an embossed graphic panel (Lexan-type overlay). The display window is left clear, the surrounding area is blocked out with opaque black ink, and semi-transparent windows are opened over LED positions. Embossing follows the plastic contours of the housing so the panel does not read as an afterthought stuck onto the enclosure.
Touch panel integration
Instruments that require a completely flat, fully wipeable surface use a touch panel. With no key cavities there are no recesses for fluid to collect in, and cleaning is a single wipe. The trade-off is loss of tactile feedback, which is why most laboratory instruments end up with a hybrid layout: critical or hazardous commands (lid release, rotor stop, heater start) stay on physical metal dome keys, while menu navigation moves to the touch area.
Contrast management in backlit panels
Backlit panels carry a specific constraint in laboratory use: the light must not wash out the display or disturb a dark-room measurement. The diffuser layer is therefore applied only behind the icons that need it, with the remaining area kept opaque. For LED colour, amber or red tones disturb dark-adapted vision far less than green or white.
Manufacturing Reality in Turkey and the Local Supply Advantage
The depth of Turkey's white goods and textile machinery manufacturing base has matured the entire front panel and keypad supply chain. That same infrastructure turns into a real advantage for laboratory and analytical instrument builders, because this sector runs comparatively low volumes with high product variety. One manufacturer typically offers several firmware versions, multiple language options and several model tiers on the same housing. Sourced from abroad, each variant means separate tooling, separate minimum order quantities and weeks of shipping lead time; produced locally, the same variety is far easier to manage.
In practice this means the mechanical tooling and tail routing stay fixed while only the print screen changes, so Turkish, English and export-market language versions can be produced in small batches. It also means fitting a sample panel physically to the instrument housing and testing it with a gloved operator is far quicker to organise with a domestic supplier.
Material and Performance Summary
| Parameter | Typical value / option |
| Overlay material | PET 0.125–0.2 mm · PC 0.175–1.0 mm |
| Printing method | Reverse-side screen printing |
| Surface texture | Matte / velvet, gloss window, selective matte-gloss |
| Key type | Flat or embossed; metal dome or poly dome |
| Cycle life | Metal dome 1–5 million · poly dome 100,000–500,000 |
| Actuation force | Application dependent; commonly 250–400 gf for gloved use |
| Illumination | LED indicator or LED backlight, 50,000–100,000 hours |
| Adhesive | High-performance double-sided tape (2 mil / 5 mil class) |
| Termination | ZIF 1.0 mm pitch tail or connector outlet |
| Ingress protection | IP65 from the panel face · IP67 for washdown designs |
| Cutting tolerance | Die-cut ±0.2 mm · laser ±0.3 mm |
| Total thickness | 0.9–1.4 mm in a typical six-layer stack |
What to Send Us at Project Kick-Off
The most frequent source of delay in laboratory instrument projects is treating the panel as an afterthought to the mechanical design. Once the housing tool is cut, it is common to find there is not enough flat area behind the key zone, no routing channel for the tail exit, or a display window that clashes with the panel cutout. Fixing the panel footprint, tail exit direction and PCB socket position early in the design cuts both the number of sample iterations and the total lead time significantly.
Send us your front panel drawing, key count, display window dimensions, target ingress protection class and estimated annual volume, and we will prepare a material recommendation, layer construction and quotation for a membrane switch keypad suited to your laboratory or analytical instrument. Tushan Elektronik — İkitelli Org. San. Bölg. Triko Center San. Sit. M6 Blok No:112 Başakşehir / Istanbul · +90 212 671 65 18 · info@tushan.com.tr
