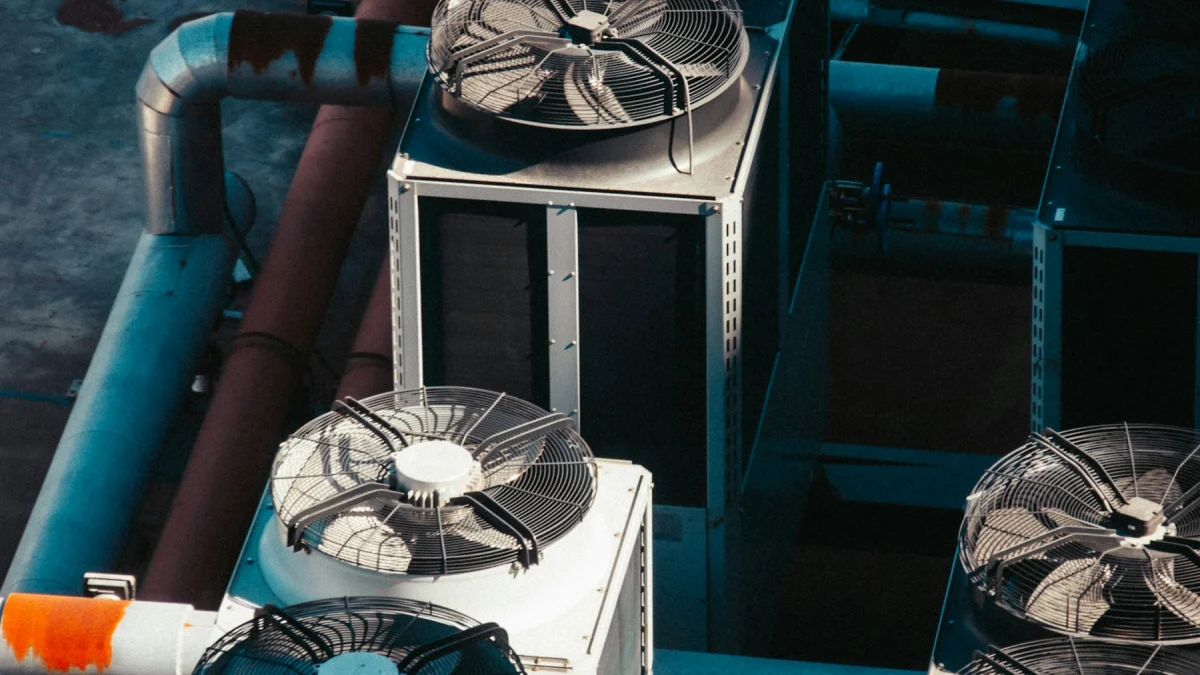

In HVAC, refrigeration and air conditioning equipment, the front panel is the single component that absorbs the full load of the operating environment. Chiller control covers, cold room door units, air handling unit (AHU) operator panels, heat pump and boiler fascias are all surfaces where condensate, wide temperature swings, compressor vibration and cleaning chemicals act at the same time. At Tushan Elektronik we engineer the HVAC membrane keypad around the equipment's real operating envelope — material, adhesive, dome type, backlighting and sealing decisions all follow from it. Since much of Turkey's air conditioning, boiler and commercial refrigeration supply base is concentrated around the Marmara region, sample and series delivery cycles from our Ikitelli facility stay short.
Four Factors That Stress an HVAC Front Panel
In this sector, field failures usually originate not in the electronics but in how the front panel responds to its environment. Four factors drive the design decisions.
Condensation and relative humidity
When a surface drops below dew point in the refrigeration cycle, a water film forms on the panel. That water rarely enters through the graphic surface; it migrates in from the cut edge of the spacer layer, from the tail exit point and around mounting holes. This is why, in HVAC applications, the perimeter width of the adhesive and the orientation of the tail exit matter more than graphic print quality.
Thermal cycling and differential expansion
A cold room panel may operate at -25 °C, while the cover of a rooftop unit can reach 70 °C under summer sun. The difference in thermal expansion between the polyester graphic layer and a painted sheet metal housing produces shear stress along the adhesive line, repeated several times a day. Most edge-lifting complaints trace back to a thin adhesive specified for a flat surface being applied to a textured or slightly non-planar cover.
Vibration and mechanical load
Continuous low-frequency vibration from compressors and fans causes micro-fretting at the contact point between the metal dome and the circuit layer. Cold room door panels additionally take impact from door slams. For this reason the dome retainer film must be continuous and the key area fully backed by the housing.
Cleaning and chemical exposure
Chlorine-based disinfectants in food refrigeration plants and compressor oil or glycol contamination in machine rooms are routine. Printing the graphic layer on its reverse side keeps the ink fully protected from chemical and mechanical wear, leaving only the hard polyester film exposed on top.
Technical Requirements Checklist for HVAC Keypads
Clarifying the following items at the quotation stage significantly increases the chance of getting the first sample right:
- Operating temperature range: minimum and maximum surface temperature the panel actually sees (inside a cold room, on an outdoor unit cover, in a plant room).
- Condensation exposure: whether a water film forms on the panel or it sits under a drip path.
- Ingress protection: is front-face IP65 sufficient, or is IP67 required in wash-down areas.
- User profile: gloved operation, and actuations per key per day.
- Illumination: backlighting needed for dim plant rooms, or readability required under direct sunlight.
- Mounting surface: painted sheet metal, textured plastic, degree of non-planarity.
- Tail and connector: tail length, exit direction, ZIF 1.0 mm pitch or another interface.
- Chemical list: cleaning agents used and contact frequency.
- Cut tolerance: whether ±0.2 mm die cutting or ±0.3 mm laser cutting tolerance is acceptable.
Materials, Layer Stack and Adhesive Selection
Graphic layer
For humid, chemically exposed HVAC environments, polyester (PET) film of 0.125-0.2 mm is the preferred graphic layer; its flexibility supports millions of actuation cycles and it remains stable against disinfectants. Polycarbonate (Lexan) films in the 0.175-1.0 mm range are used for embossed graphic panels and fascias without moving keys — rigid and crisp in appearance, but with lower fatigue resistance than PET in continuously actuated key areas.
Adhesive
On flat, clean metal surfaces 3M 467MP (approximately 0.05 mm / 2 mil) is adequate, while painted, textured or slightly non-planar HVAC covers call for 3M 468MP (approximately 0.13 mm / 5 mil). The thicker adhesive fills surface roughness and denies condensate a capillary path. In condensing applications, a generous adhesive perimeter is worth more than squeezing in extra keys.
Gloved Operation, Tactile Feedback and Key Life
Cold room and plant room operators work with thick gloves, so the key boundary must be felt through the glove. The combination of embossed key geometry with a metal dome is therefore the dominant solution in this sector. Metal domes are typically offered across an actuation force range of 150-500 gf and deliver 1-5 million cycles. Polyester poly dome constructions stay within 100,000-500,000 cycles — appropriate for service panels used a few times a day, whereas metal domes are the correct choice where operator intervention is continuous.
Touch panels suit display and setpoint interfaces in clean, dry locations; but wherever a water film forms on the surface or thick gloves are used, a membrane keypad is the more dependable answer. Which part of the equipment is solved with which technology is best decided together at project start.
Illumination and Readability
Plant rooms and technical spaces are mostly dim, while rooftop units sit in direct sun. In LED-backlit membrane keypads, SMD LEDs deliver 50,000-100,000 hours of service life and, being embedded within the layer stack, remain sealed against dust and moisture. On sun-exposed panels, a matte anti-glare surface texture and high-contrast graphic separation preserve readability by reducing reflection. Where maintenance teams intervene at night, illuminating only selected symbols and status icons avoids unnecessary glare.
Sealing, Pressure Balance and IP Rating
A frequently overlooked point in HVAC panels is that a fully sealed construction develops an internal pressure differential under thermal cycling. As temperature rises the trapped air expands, the key surface balloons and dome behaviour degrades over time. A vented design equalises pressure but risks drawing moisture in humid environments. Our approach is either to route the tail exit into the dry side of the enclosure so pressure balances through the cabinet interior, or to minimise the internal void volume so a fully sealed construction stays stable. Front-face IP65 is the baseline, with IP67 targeted in wash-down food refrigeration areas.
Mounting, Connector and EMC Details
Inverter-driven compressors and fan drives generate significant electromagnetic noise. Keeping the tail no longer than necessary, avoiding parallel routing with power cabling, and adding a conductive shielding layer to the stack where required are the most effective measures against false key detection. ZIF 1.0 mm pitch is the common connector standard; keeping the tail exit above the condensate drip path physically blocks water migration.
Typical Specification Summary
| Layer stack | Typically 6 layers, 0.9-1.4 mm total |
| Graphic film | PET 0.125-0.2 mm (keyed) / PC 0.175-1.0 mm (graphic panel) |
| Dome type | Metal dome 1-5 million cycles / poly dome 100,000-500,000 cycles |
| Actuation force | Selectable, typically 150-500 gf |
| Illumination | SMD LED, 50,000-100,000 hours |
| Adhesive | 3M 467MP (0.05 mm) flat surfaces / 468MP (0.13 mm) textured surfaces |
| Protection class | IP65 from the front face, IP67 where the application requires |
| Cut tolerance | Die ±0.2 mm / laser ±0.3 mm |
| Connector | ZIF 1.0 mm pitch, tail length and exit direction project specific |
Samples and Quotation
To start front panel work for a chiller, cold room, air handling unit, heat pump or commercial refrigeration cabinet project, a drawing, a photo of the existing panel or even approximate dimensions is enough. Share the operating temperature range, condensation exposure, whether gloves are used and the cleaning chemicals involved, and we will come back with a layer stack, dome selection and adhesive recommendation together with pricing. For quotations and sample requests you can reach us on +90 212 671 65 18 or at info@tushan.com.tr.
