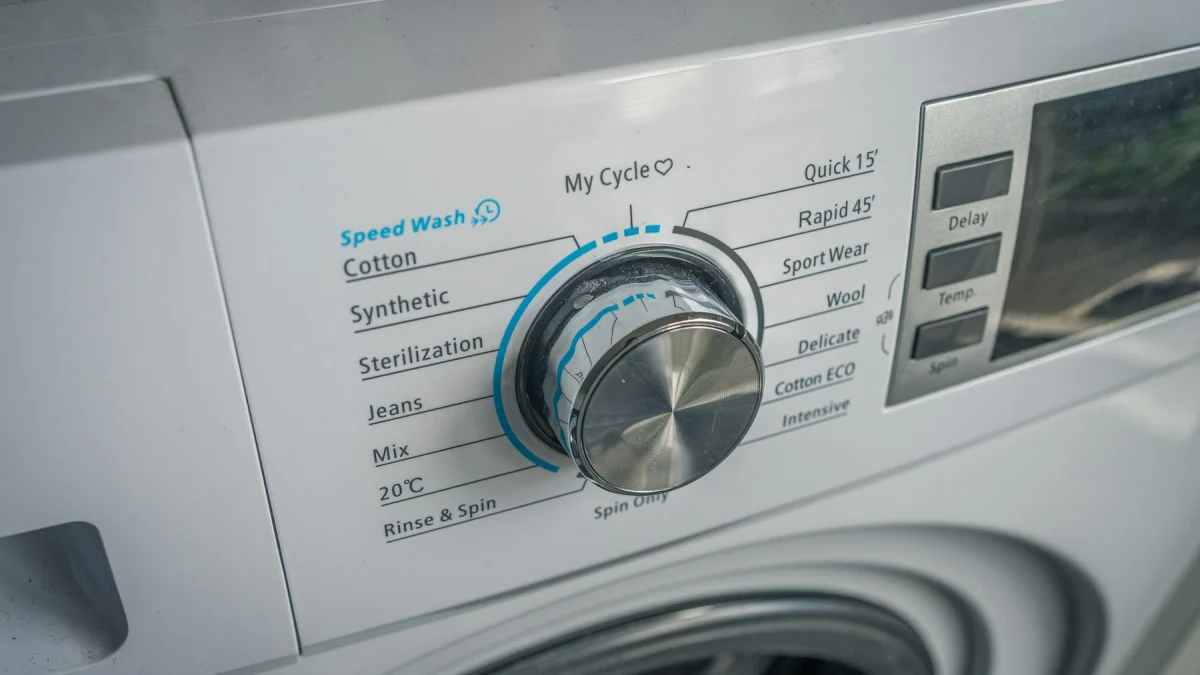

Washing machines, dishwashers, built-in ovens, refrigerators and air conditioners are all operated through a single surface the user actually touches: the control panel. Home appliance keypad manufacturing is therefore not a printing job but a layer-engineering problem, where humidity, steam, thermal swing, cleaning chemicals and hundreds of thousands of actuation cycles must be handled by the same laminated stack. At its İkitelli OSB plant, Tuşhan Elektronik produces membrane switch keypads, embossed graphic panels, backlit panels and touch panels built to the front-panel requirements of appliance manufacturers.
The real operating conditions an appliance front panel faces
An industrial machine panel may be pressed a few times a day. An appliance panel is pressed with wet hands, with gloves, with detergent on the fingertips and, in a kitchen, through a film of airborne cooking grease. Those daily realities set the design criteria.
Humidity, steam and cleaning chemicals
When a dishwasher door is opened at the end of a cycle, hot steam hits the front panel directly. Detergents and softeners in laundry appliances, alkaline rinse aids in dishwashers, and degreasers or citrus/ammonia based cleaners around ovens all reach the panel surface. For this reason the graphics are always printed as second surface, on the underside of the overlay: the ink is never touched, never abraded and never chemically attacked. The only material exposed to the user is the hard-coated polyester or polycarbonate film itself.
For sealing, IP65 is the normal target on the front face, with IP67 specified where splash or wash-down loading is severe. One detail matters more here than in most industries: the venting channel that a standard membrane switch relies on cannot be opened to the outside. In a fully sealed stack, temperature swings create a pressure differential between layers, so internal air channels are routed between the dome pockets to equalise it and preserve consistent tactile feel and switching reliability.
Temperature range: from oven fascia to freezer compartment
An oven fascia sits directly above the door and carries a continuous heat load, where the governing property is adhesive creep at elevated temperature. 3M 467MP at 0.05 mm suits thin, smooth mounting surfaces, while 468MP at 0.13 mm is preferred on powder-coated sheet metal or lightly textured plastic housings. In both cases the bond reaches full strength in roughly 72 hours, and that dwell time should be respected after assembly. Refrigerators pose the opposite problem: near freezer compartments, low temperature plus condensation on door opening tests both overlay flexibility and adhesive tack.
Stack construction and material selection
A typical appliance membrane switch consists of six layers: graphic overlay, overlay adhesive, upper circuit layer, spacer, lower circuit layer and rear mounting adhesive. Total build thickness normally falls between 0.9 and 1.4 mm, which fits the recess depth designed into most front-panel housings.
PET or polycarbonate?
| Criterion | PET (0.125-0.2 mm) | Polycarbonate (0.175-1.0 mm) |
| Emboss durability | High; recovers after repeated actuation | Limited; suits flat key layouts |
| Chemical resistance | High; withstands detergents, rinse aids and alcohol-based cleaners | Moderate; avoid ammonia-based and aggressive solvent cleaners |
| Thermal behaviour | Stable under moderate heat load | Better dimensional stability under continuous heat load |
| Visual character | Strong in matte and semi-matte textures | High gloss, deep black, crisp print detail |
| Typical use | Washing machine and dishwasher panels with embossed keys | High-gloss display areas and flat panel zones with elevated heat load |
The selection is not made on a single criterion. Where a continuous heat load is present, as on an oven fascia, the dimensional stability of polycarbonate is an advantage; but if ammonia-based or solvent-bearing cleaners are expected in the same area, the hard-coat class has to be specified accordingly, and PET should be chosen where the chemical load dominates. On any panel with embossed keys, PET remains the default because it retains emboss geometry under repeated actuation.
Tactile feedback and key life
Stainless steel metal domes deliver 1-5 million cycles with a crisp audible click, at a typical actuation force of 250-500 gf. Poly dome (formed polyester) construction gives 100,000-500,000 cycles at 150-300 gf, with a softer and noticeably quieter response. In appliances this translates into a practical split: menu and selection keys can be solved economically with poly domes, while the power and start keys, which are pressed on every single cycle and accumulate many times the actuation count of the rest, are better specified with metal domes.
Backlighting, dead-front and legend legibility
SMD LEDs used in backlit panels offer a service life in the 50,000-100,000 hour range. The construction most often requested in appliances is the dead-front effect: with the appliance off the panel reads as one uninterrupted surface, and when the LED is energised the icon or digit appears from beneath it. Achieving this requires a controlled-transmission grey or black filter print in the graphic layer, a properly designed light guide, and LEDs selected from a single bin — otherwise brightness and colour shift becomes visible from key to key on the same panel.
Typical technical requirement list for an appliance front panel
- Front-face protection: IP65, or IP67 where splash loading is high
- Graphic overlay: hard-coated PET 0.125-0.2 mm or PC 0.175-1.0 mm
- Printing: second surface, Pantone matching, ΔE ≤ 2 as the usual acceptance criterion
- Actuation force: metal dome 250-500 gf / poly dome 150-300 gf
- Cycle life: metal dome 1-5 million / poly dome 100,000-500,000
- Contact resistance < 100 Ω · insulation resistance > 100 MΩ
- Total stack thickness: 0.9-1.4 mm for a typical six-layer build
- Cutting tolerance: ±0.2 mm die-cut, ±0.3 mm laser-cut
- Termination: ZIF tail at 1.0 mm pitch (0.5 mm and 2.54 mm alternatives available)
- Mounting adhesive: 3M 467MP (0.05 mm) on smooth surfaces, 468MP (0.13 mm) on textured surfaces
- Illumination: SMD LEDs, 50,000-100,000 hours, with dead-front filter printing
- Embossing: rim or pillow emboss with a defined height tolerance
Repeatability in volume production: the real test of appliance projects
Appliance programmes combine high volumes with long model lifecycles. One good-looking sample is not the deliverable; the same grey tone, the same emboss height and the same click feel must hold across batches. That is why the cutting die, the emboss tool and the dome placement fixture have to be defined correctly at first-article stage — tooling changes after serial production has started are both costly and schedule-breaking.
Model-year revisions, on the other hand, work in the manufacturer's favour. A change of icon set, language or programme naming usually affects only the graphic overlay. When the circuit layers, spacer geometry and cutting die are retained, the revision is closed quickly and at a fraction of the cost of developing a new panel.
Local front-panel supply within the Turkish appliance industry
Türkiye is a significant production and export base for home appliances serving European markets, with OEM plants and their component suppliers operating in close geographical proximity. For a part like the front panel — visible to the end user, and largely responsible for perceived product quality — that proximity turns into a measurable advantage: the sample-and-revision loop runs on a physical part that can be held in the hand rather than on a photograph, with no shipping time between steps. The high minimum order quantities and screen-based colour approval that come with distant sourcing no longer apply. The same proximity makes it practical to flex batch sizes when seasonal demand shifts.
Validation steps from first article to serial supply
A project starts by fixing the housing recess, the tail exit direction and the connector type. Physical samples are then produced for print and colour approval, and functional samples for emboss geometry and tactile response. Tooling, pilot batch and line release follow. The assembly trial on the customer's own line matters at this point: adhesive cure time, cleanliness of the housing surface (an isopropyl alcohol wipe before bonding) and the pressure applied during lamination eliminate the majority of field complaints about panel lifting before they occur.
Send the front-panel drawing, key layout and target quantity for your washing machine, dishwasher, oven, refrigerator or air conditioner project, and we will prepare a quotation covering materials, stack construction and illumination options. Tuşhan Elektronik · İkitelli Org. San. Bölg. Triko Center San. Sit. M6 Blok No:112 Başakşehir / İstanbul, Türkiye · Phone: +90 212 671 65 18 · Mobile: +90 551 600 62 31 · info@tushan.com.tr
