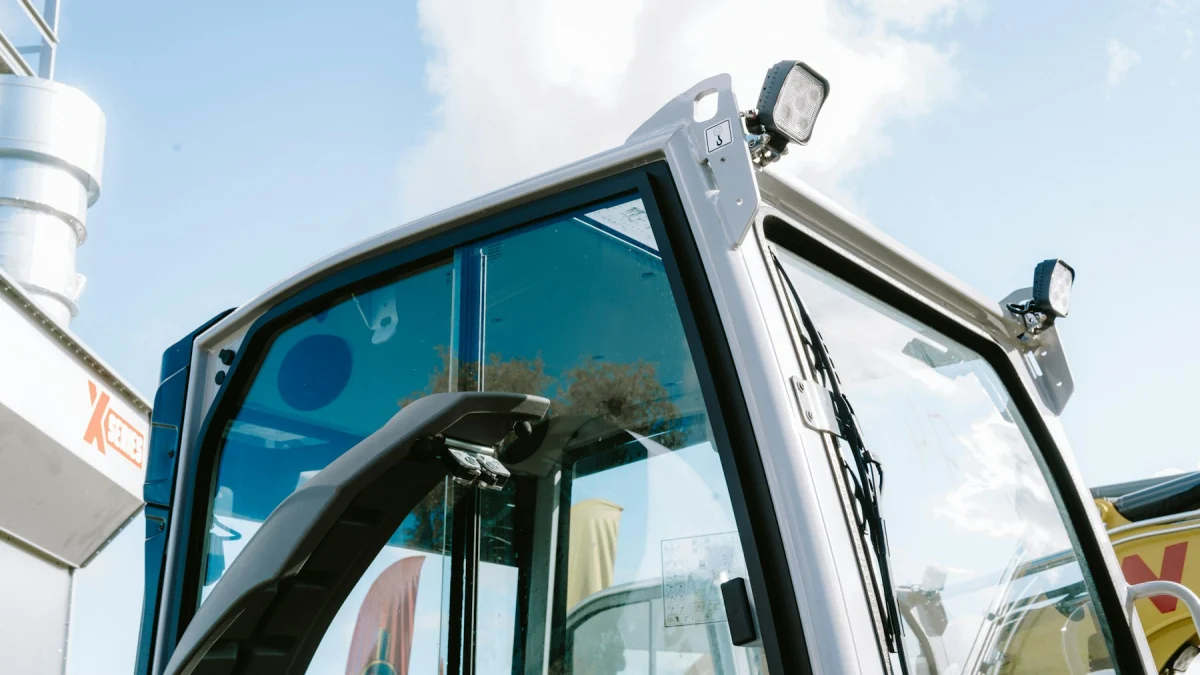

Control panels installed in excavators, backhoe loaders, telehandlers, mobile cranes and warehouse forklifts operate inside one of the harshest duty envelopes in industrial electronics: continuous diesel engine vibration, hydraulic breaker shock, sub-zero site mornings in winter, surfaces heating up behind the cab glass in summer, plus hydraulic oil, grease, diesel and pressure washing. In this context, specifying a construction machinery keypad is not a cosmetic choice but an engineering decision that directly drives warranty-period field service cost. Tuşhan Elektronik manufactures membrane switch keypads, embossed graphic panels, backlit panels and touch panels to meet these requirements for machinery and forklift builders.
What stresses the panel in machinery and forklift cabs
Continuous vibration and mechanical shock
On a tracked or wheeled machine, the panel is exposed to broadband vibration originating from engine speed and ground impact. A membrane switch has no moving mechanical parts and is therefore structurally tolerant of vibration; most field failures occur not on the key area but at the root where the flexible tail exits the panel and at the connector interface. The design response is to keep the free tail length as short as possible, reinforce the tail root, specify a locking ZIF connector, and clamp the tail into a cable channel so it cannot oscillate. Full-surface adhesive mounting to the sheet metal also lowers resonance: 3M 467MP (0.05 mm) suits flat, clean metal, while 468MP (0.13 mm) tolerates painted or slightly uneven surfaces.
Wide temperature swing and UV load
The same machine may be started below freezing in the morning and reach far higher surface temperatures under direct sun in the afternoon. This swing can drive delamination between layers with differing expansion behaviour, and cause graphic shift. Hard-coated PET at 0.125-0.2 mm is the preferred overlay for machinery panels, since PET remains dimensionally stable across a wide temperature range and high actuation counts. Polycarbonate (0.175-1.0 mm) is used where deep embossing or a rigid front panel is required and cycle counts are lower. All graphics are printed on the second surface (reverse printing), so the ink sits protected beneath the film thickness against glove abrasion, dust and cleaning chemicals.
Dust, mud, hydraulic oil and pressure washing
The contamination load on a jobsite or in a warehouse is never constant: silica dust, cement, fertiliser, battery acid vapour, hydraulic oil and diesel all pass across the same panel. Sealing is achieved through an uninterrupted adhesive barrier surrounding the key area and clean die cutting with no adhesive squeeze-out. A correctly designed membrane switch reaches IP65 at the panel surface and, evaluated together with the mounting surface, can achieve IP67. In fully sealed constructions, air trapped in the switch cavity expands with temperature and can distort tactile feel, so a venting channel is routed into the dry volume inside the cab.
Tactile design for gloved operation
Operators work with heavy-duty gloves, and the resulting loss of fingertip sensitivity makes strong mechanical feedback mandatory. Stainless steel metal domes are therefore the baseline for machinery and forklift panels. Metal domes provide a crisp click and a 1-5 million cycle life; poly domes (formed foil) fall in the 100,000-500,000 cycle range and are generally considered too soft with gloves. Dome force selection is critical: too low invites unintended actuation during shock and vibration, too high causes operator fatigue over a long shift.
Embossing addresses the same problem. Pillow embossing over the key lets the finger locate it without looking; rim embossing raises a border around the key so the finger cannot slide onto a neighbouring key during a jolt. Typical emboss height is 0.3-0.8 mm. For critical functions such as travel lock, attachment disable and emergency stop, rim embossing combined with increased key centre spacing (typically 19 mm or more for gloved use) is recommended.
Technical requirement checklist for a construction machinery keypad
- Overlay: hard-coated PET 0.125-0.2 mm; PC 0.175-1.0 mm where deep embossing is required
- Printing: second-surface reverse printing, UV-resistant inks, matte finish to reduce sun glare
- Switching: stainless steel metal domes, 1-5 million cycles, high tactile feedback for gloved use
- Sealing: IP65 at the panel surface, IP67 target together with the mounting surface
- Overall thickness: typically 0.9-1.4 mm in a 6-layer stack without a separate illumination layer
- Rear adhesive: 3M 467MP (0.05 mm) on flat metal, 468MP (0.13 mm) on painted or uneven surfaces
- Tail: 1.0 mm pitch ZIF termination, locking connector, short free length, reinforced root
- Cutting tolerance: ±0.2 mm with steel rule die, ±0.3 mm with laser
- Illumination: LED backlighting, 50,000-100,000 hours typical life, dimmable drive
- Noise immunity: shielding layer and ground termination where required
- Spare parts: artwork, die data and layer recipe archived so the panel stays reproducible for the machine's service life
Layer stack and typical material selection
| Layer | Typical material / thickness | Function |
| Graphic overlay | Hard-coated PET 0.125-0.2 mm or PC 0.175-1.0 mm | Graphics, embossing, abrasion and chemical barrier |
| Overlay adhesive | Acrylic transfer adhesive | Bonds overlay to the layer beneath |
| Dome layer | Stainless steel domes with retainer foil | Tactile feedback, 1-5 million cycles |
| Spacer | PET 0.1-0.2 mm | Contact gap and open-circuit separation |
| Circuit layer | Silver conductive print on PET 0.125-0.175 mm | Conductive traces and 1.0 mm pitch ZIF tail |
| Rear adhesive | 3M 467MP 0.05 mm or 468MP 0.13 mm | Full-surface mounting to sheet metal |
| Illumination layer (optional) | LEDs placed on the membrane circuit or light guide film | Night and low-light legibility |
| Total | Typically 0.9-1.4 mm | Standard 6-layer construction without a separate illumination layer; adding an LED layer moves thickness towards the upper limit |
Night shifts and low-light legibility
Machines at ports, mines and infrastructure sites run in shifts, while warehouse forklifts operate in aisles with no daylight and inside cold storage. The goal of a backlit panel is not to make the panel bright, but to keep symbols legible without destroying the dark-adapted eye. The 50,000-100,000 hour typical LED life matches machine service life; however, the drive should provide dimming and at least a two-step day/night brightness setting. Printing legends and symbols as light-transmitting areas with a fully opaque background improves night legibility and daytime contrast alike. On forklifts moving between cold storage and ambient areas, condensation makes a fully sealed, flat and easily wiped panel surface even more important.
Mounting, field service and local supply
Türkiye has a broad manufacturing base producing machinery attachments, hydraulic breakers, buckets, forklift attachments, loading ramps, electric stackers and mobile crane superstructures. A large share of these manufacturers export and must supply spare parts for the machines they deliver for many years. One of the core supplier responsibilities is that the panel can still be reproduced a decade later with identical graphics, outline dimensions, tail exit direction and dome force. For that reason, print films, die-cut data and the layer recipe are archived for every project.
Tuşhan Elektronik manufactures flat or embossed membrane switch keypads with metal domes or LEDs, embossed graphic panels, backlit panels and touch panels at its facility in the İkitelli Organised Industrial Zone in Istanbul. Local manufacturing shortens revision loops and speeds up the sample-and-approval cycle, which is a clear advantage on machinery programmes.
Share your panel outline dimensions, key layout, tail exit direction, target IP rating and operating temperature range, and a quotation will be prepared with a suitable layer stack and material selection, with a sample submitted for approval before series production. For a quotation, contact +90 212 671 65 18 or info@tushan.com.tr.
